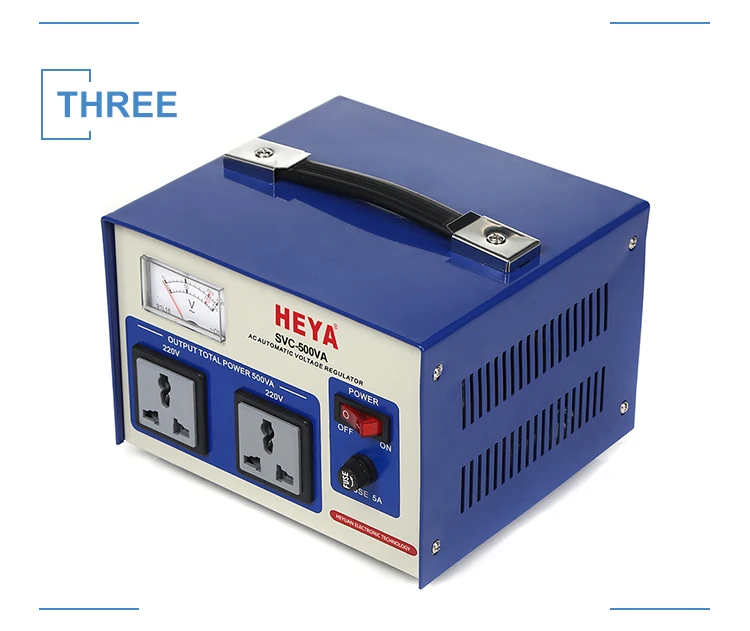

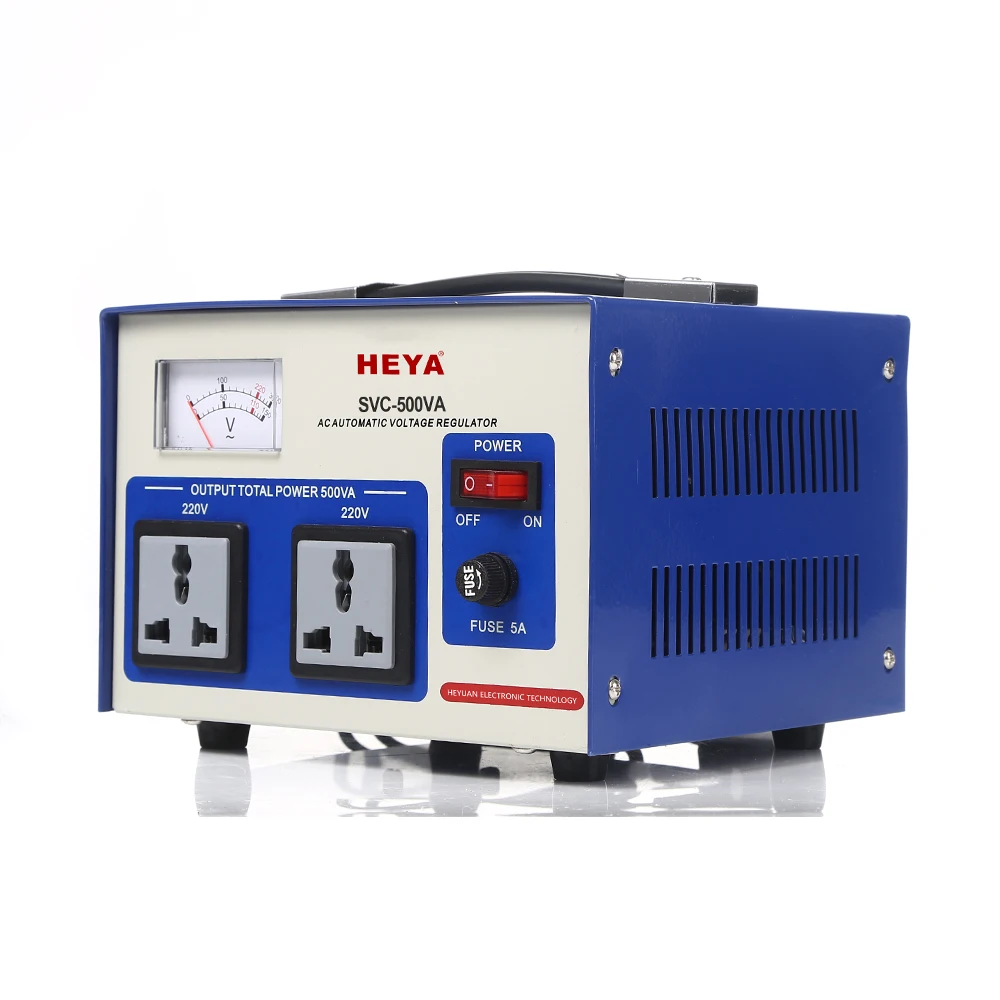

Servo svc 500 watt 220v ac Automatic Stabilizer

FOB Reference Price:Get Latest Price
US $16.28-17.09 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HEYA/OEM
Model Number:
SVC-500VA
Phase:
Single Phase
Current Type:
AC
Certification:
ISO9001:2008,PCT,SGS,CE
Input voltage:
AC 140V-260V
Output voltage:
220V +-1.5% or 3.5%
Frequency:
50~60Hz
Technology:
CPU Based Digital Circuit + Transformer
Protection system:
short circuit, over heating, over/lack voltage,over load
Power factor:
0.8(can Customized 100% full power)
Delay time:
Short 5s-+2s(can be selected)
Display:
Analog voltage stabilizer
Product Name:
Servo svc 500 watt 220v ac Automatic Stabilizer
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month Automatic Stabilizer
Packaging & Delivery
Packaging Details
Servo svc 500 watt 220v ac Automatic Stabilizer
Package:Standard export cartons;
packing size: 420x245x340;car/pcs:4;
20GP:743CATONS;
40GP:1543CARTONS;
40HC:1943CARTONS
Port
Ningbo/Shanghai

Servo svc 500 watt 220v ac Automatic Stabilizer

Technology Parameter

Technology

Servo motor control system+Micro compute programmed control

Input voltage

AC 140-260V

Output voltage

220V±1.5% or 3.5%

Phase

single-phase voltage stabilizer

Frequency

50-60Hz

Adjust time

<1 sec.(against 10% input voltage deviation)

Protection over voltage

<250±2V

Protection lack voltage

<185±2V

Delay

3 second

Temperature protection

110±10

Ambient temperature

-10~45

Relative humidity

<90%

Wave form distortion

No additional wave form distortion

Efficiency

>95%

Dielectric strength

1500V/min

Insulation resistance

≥5MΩ

Specification,Dimensions and Weight

Model

Power output

Unit(pcs)

Package size(mm)

G.W.(Kg)

SVC-500VA

500VA

4

420x245x340

16.80

SVC-1000VA

1000VA

4

495x265x410

22.40

SVC-1500VA

1500VA

4

495x265x410

24.40

SVC-2000VA

2000VA

2

605x350x255

18.50

SVC-3000VA

3000VA

2

595x385x290

26.00

SVC-5000VA

5000VA

1

460x390x290

18.00

SVC-8000VA

8000VA

1

460x390x290

24.00

SVC-10000VA

10000VA

1

460x390x290

25.50

SDV-15000VA

15000VA

1

554x514x758

62.00

SDV-20000VA

20000VA

1

552x514x970

86.50

SDV-30000VA

30000VA

1

552x514x970

95.00
