Digital type LED 500 watt 10000 watt ac automatic voltage regulator

FOB Reference Price:Get Latest Price
US $11.42-74.3 / Pieces | 100 Piece/Pieces 500 watt automatic voltage regulator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HEYA/ OEM
Model Number:
SDR-5000 voltage regulator
Usage:
SVC
Phase:
Single Phase
Current Type:
AC
Input voltage:
AC80-260V,100-260V,140-260V
Output voltage:
220V+/-8%
Frequency:
50Hz/60Hz voltage regulator
Protection system:
short circuit,over heating,over/lack voltage,over load
Certification:
ISO9001:208, PCT,SGS,CE
Technology:
CPU Based Digital Circuit + Transformer
Delay time:
Short 5s-+2s(can be selected)
Power factor:
0.8(can Customized 100% full power)
Waveform distortion:
no additional wave form distortion
Display:
LED voltage regulator
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month 10000 watt ac automatic voltage regulator
Packaging & Delivery
Packaging Details
Digital type LED 500 watt 10000 watt ac automatic voltage regulator
The package:standard export cartons;packing size:355X305X450 pcs/carton:4;20GP:530 cartons;40GP:1100cartons;40HC:1390cartons
Port
Ningbo/Shanghai
Lead Time :
Within two weeks,voltage regulator

After-Sales Service
contacts

  sdr series

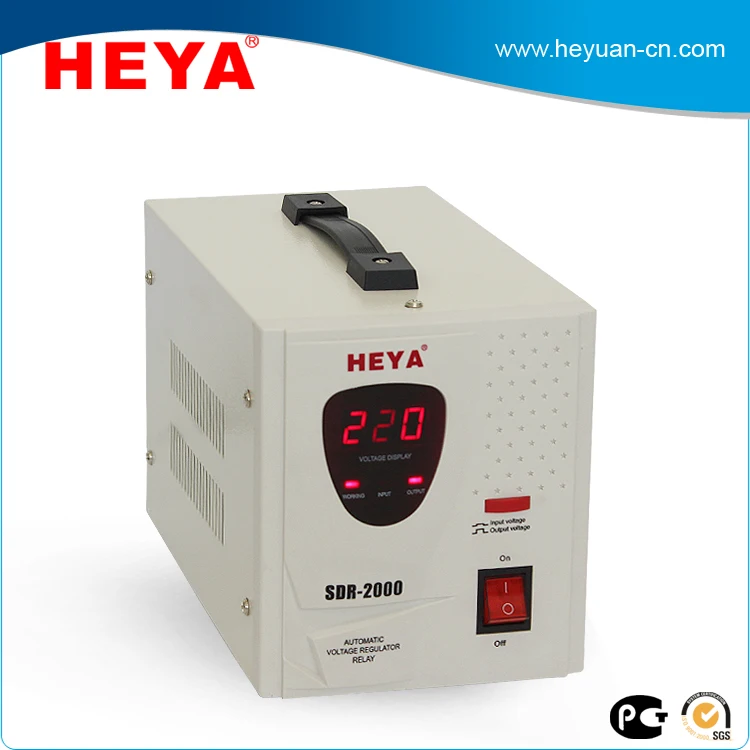

SDR-2000

      Digital type LED 500 watt 10000 watt ac automatic voltage regulator

ModelSDR-      500VASDR-  1000VASDR-  2000VASDR-  3000VASDR-  5000VASDR-10000VA SDR-12000VA
TechnologyRelay Control System+Micro compute programed control+control algorithm relay" Cross zero"
LED DisplayColorAccording to customer requirement,voltage regulator
InfoInput Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
ProtectionOver VoltageOutput voltage ≥ 245v± 4
Over Loadingmore than 120%
Over Temperture120° C± 10° C
Delay time3 second
LauguageEnglish/Russia/Chinese
Input VoltageAC140-260V
Output Voltage220V± 8%  Adjustable
Frequency50Hz/60Hz
PhaseSingle Phase voltage regulator
Efficiency≥ 90%
Ambient Temperature-15° C~45° C
Relative Humidity< 95%
Waveform distortionno additional wave form distortion
Insulating ResistanceNormally more than 2MΩ
Power350W700W1400W2400W3500W7000W9600W
Packing Size(mm)575× 275× 380575× 275× 380355× 305× 450355× 305× 450515× 420× 310460× 265× 310460× 265× 310
Packing8844211
G. M19.5223.1221.9223.3222.7215.9018.70


 SDR 1.jpg
