New Technology! Servo Type 5000 watts Voltage Stabilizer For Water Pump

FOB Reference Price:Get Latest Price
US $52.7-112.35 / Pieces | 50 Piece/Pieces 5000 watts voltage stabilizer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HEYA/OEM
Model Number:
SDFII-6000 voltage stabilizer
Usage:
SVC
Phase:
Single Phase
Current Type:
AC
Color:
gray/white,5000 watts voltage stabilizer
Technology:
Servo Motor Control System
Control:
Micro Computer Programmed Control
Display:
LCD display voltage stablizer
Input voltage:
AC 140V-260V
Output voltage:
220V+-1.5% or 3.5%
Frequency:
50Hz/60Hz
Protection over voltage:
<250+-2V
Protection lack voltage:
<185V+-2V
Wave form distortion:
No additional wave form distortion
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month 5000 watts voltage stabilizer
Packaging & Delivery
Packaging Details
New Technology!Servo type 5000 watts voltage stabilizer for water pump
Package:Inside with gift box, outside with carton box
Port
Ningbo/Shanghai
Lead Time :
Within 2 weeks after confirm the order,5000 watts voltage stabil

After-Sales Service


New Technology! Servo Type 5000 watts Voltage Stabilizer For Water Pump

Product Parameter :

Model

SDFII-4000-L

SDFII-6000-L

SDFII-10000-L

SDFII-12000-L

Nominal Power

4000VA

6000VA

10000VA

12000VA

Power Factor

0.6-1.0

Input

Operating Voltage Range

120~275V

Regulation Voltage Range

140~260V (custom made)

Frequency

50/60 HZ

Connection Type

Input terminal block

Output

Operating Voltage

180~255V

High Cut Voltage

255V

Low Cut Voltage

180V

Safety Cycle

8 Seconds / 180 Seconds (Optional)

Frequency

50 /60 HZ

Connection Type

Output terminal block

Regulation

Regulation %

1.5% / 3.5%

Number of Taps

NO

Transformer Type

Toroidal auto transformer

Regulation Type

Servo type

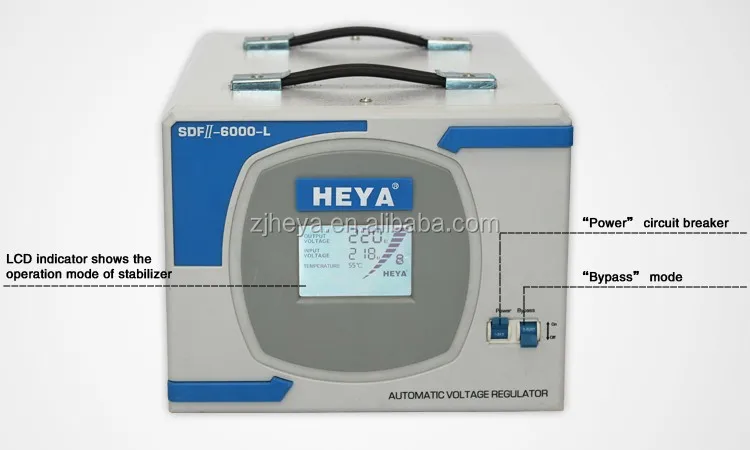

Indicators

LCD Display

Input voltage

Output voltage

Delay time

Load usage

Normal working

Temperature of transformer

Error code

Protection

Over Temperature

Auto Shutdown at 120 ℃

Short Circuit

Auto Shutdown

Overload

Auto Shutdown

Over / Under Voltage

Auto Shutdown



Packaging information

Model

Unit(PCS)

Device Size(MM)

Package Size(MM)

G.W.(KGS)

SDFII-4000-L

1

350*245*210

430*325*280

13.42

SDFII-6000-L

1

350*245*210

430*325*280

16.96

SDFII-10000-L

1

455*280*240

530*360*310

25.44

SDFII-12000-L

1

455*280*240

530*360*310

27.96
